| Model Year | 2027 |
|---|---|
| Options | 50 CM stellar / chrome (Item# 4054571530325 111241050) out of stock 54 CM stellar / chrome (Item# 4054571530332 111241054) out of stock 58 CM stellar / chrome (Item# 4054571530349 111241058) out of stock 62 CM stellar / chrome (Item# 4054571530356 111241062) In Stock |

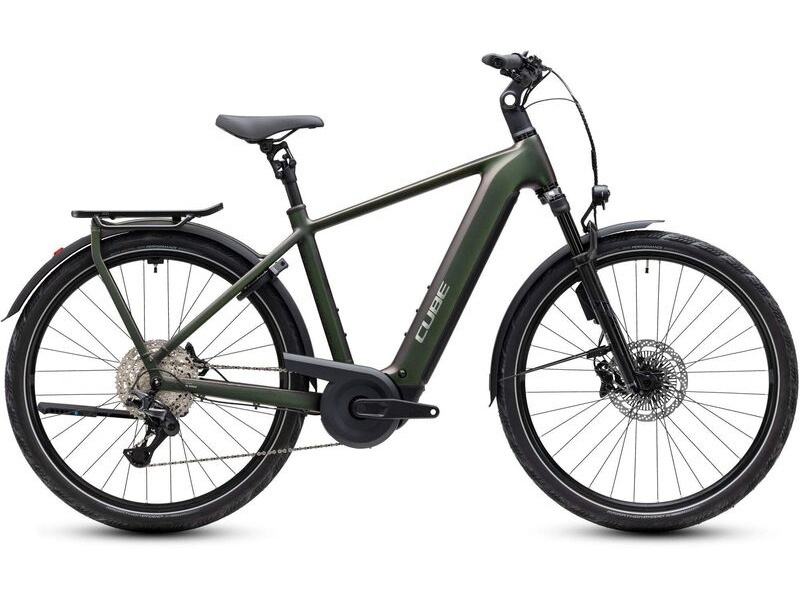

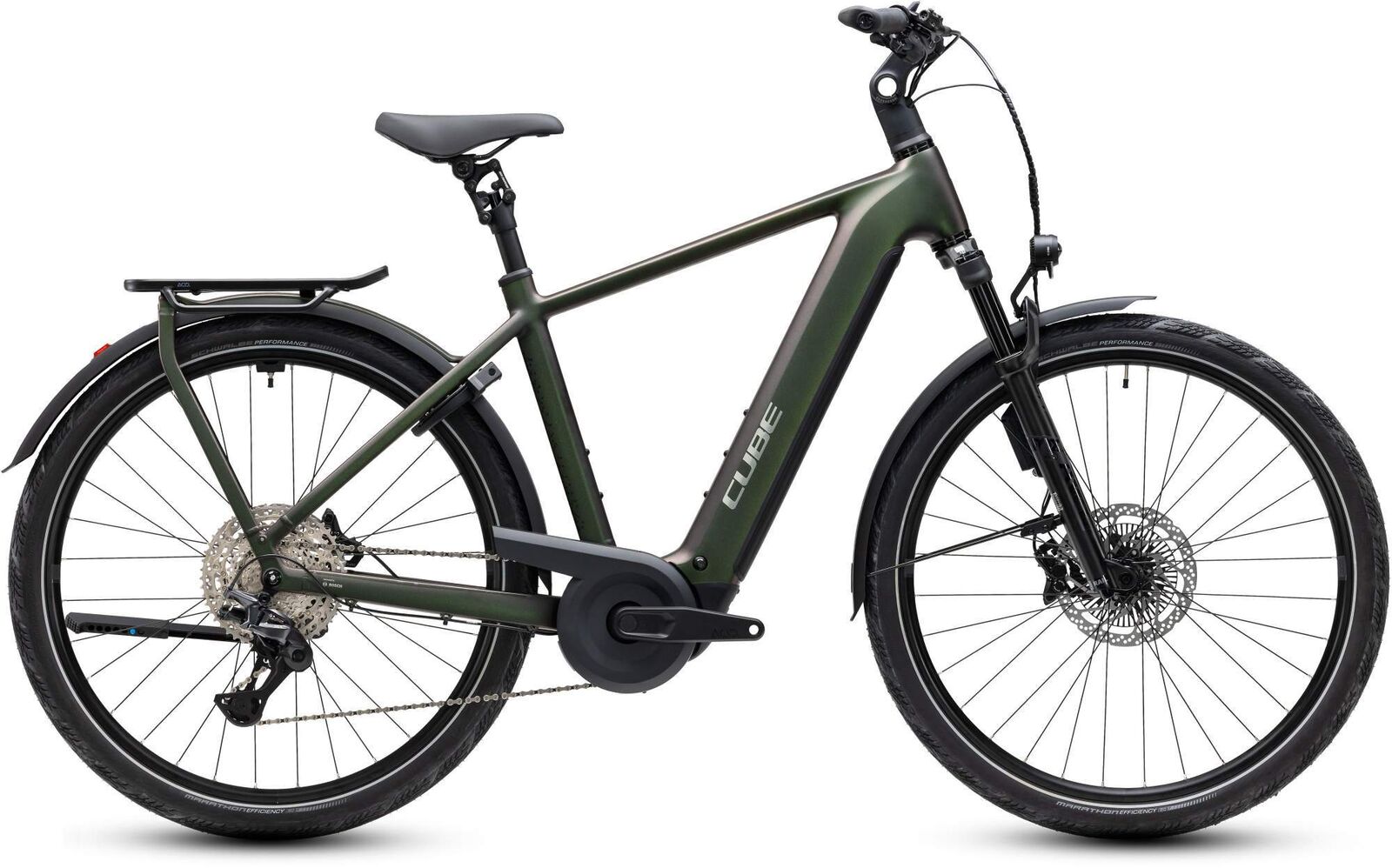

| Details | The CUBE Kathmandu Hybrid EXC is built to go places. We started with Bosch's CX motor an 800Wh PowerTube battery and Kiox 500 display to give you up to 120Nm of pedal assistance on your way to work or to adventure. Then we chose Shimano's legendary XT 1x12 gears for their huge range and dependable performance. Added 4-piston Shimano hydraulic disc brakes with ABS so you know you can always slow and stop safely. And finished with a smooth comfortable Fox 34 AWL Float Sport suspension fork. But that's not quite all because of course there's also an adjustable stem parallelogram seatpost and our strong elegant and versatile Integrated Carrier 3.0 plus a full complement of accessories. The CUBE Kathmandu Hybrid's design is classically elegant - familiar even - but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork for better control even when the going gets rough. Internal Cable Routing complements the frame's clean lines while a UDH dropout is tough versatile and future-proof. And of course there's an integrated chain guard mount and our rugged sturdy and exceptionally neat Integrated Carrier 3.0 so you can carry everything you need for your adventures. |
| Frame | Aluminium Superlite Gravity Casting Technology Efficient Comfort Geometry Boost148 UDHTM Fully Integrated Battery Integrated Carrier 3.0 Advanced Internal Cable Routing Integrated Seatclamp |
| Forks | Fox 34 Float AWL 2-Position Sweep-Adjust RAIL Damper Tapered 15x110mm E-Bike Optimized 100mm |
| Rear Derailleur | Shimano XT RD-M8200-SGS ShadowPlus 12-Speed |
| Shifters | Shimano Deore SL-M6210 Single Click |
| Chainset | ACID MTB Hybrid Pro 40T |
| Chain | KMC e12 |
| Freewheel | Shimano Deore CS-M6100 10-51T |
| Headset | ACROS AZF-1035 ICR (Integrated Cable Routing) Top Zero-Stack 1 1/2" (ZS 56mm) Bottom Zero-Stack 1 1/2" (ZS 56mm) HIC |
| Stem | CUBE Comfort Stem Pro 35mm Adjustable |
| Handlebars | CUBE Comfort Trail Bar HD 720mm |
| Tyres | Schwalbe Marathon Efficiency Performance 55-622 |
| Saddle | ACID Sequence 180 Pro Plus Ultra Gel |
| Seatpost | SR Suntour NVX 31.6mm |
| Pedals | ACID PP Trekking |
| Grips | ACID Travel Comfort |
| Miscellaneous | Front light: ACID Front Light PRO-E 150 X-Connect 12V DC Rear light: ACID Mudguard Rear Light PRO-E 12V DC Kickstand: ACID FM Pure Silent Mudguard: ACID 65 Integrated Carrier 3.0 Bell: Ring Bell Carrier: ACID Integrated Carrier 3.0 CSR CUBE Adapter Compatible |
| Brakes | Shimano BR-MT420 ABS Hydr. Disc Brake (203/203) (203/203) |
| Wheelset | ACID SLX 25 32/32 Spokes 15x110mm/12x148mm Tubeless Ready |
| Motor | Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) |
| Battery | Bosch PowerTube 800 |
| Display | Bosch Kiox 500 Remote: Bosch LED Remote |
